    Project Details

  • Category:
  • Client: General Authority for Roads, Bridges and Land Transport (GARBLT).
  • Location: Egypt
  • Cost: 12 Million USD

    Contact Info

  • Sericon Building, Riyadh
  • +966 11 475 66 55

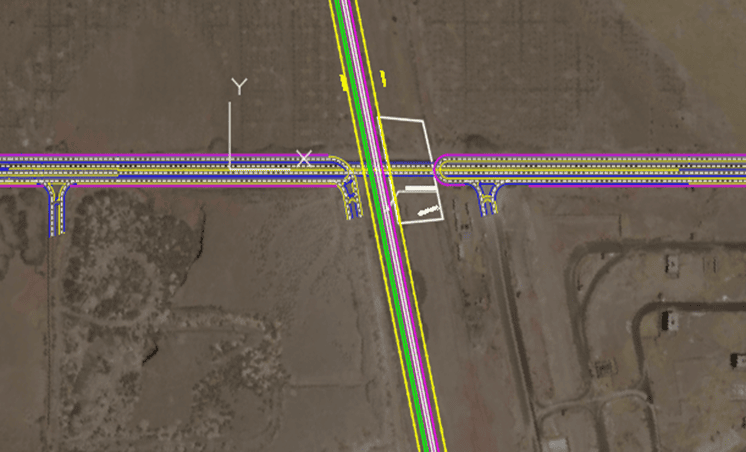

Boulevard Road and Bridge Crossing the Electric Express Train from El Ain El Sokhna City to New Alamein City / Egypt

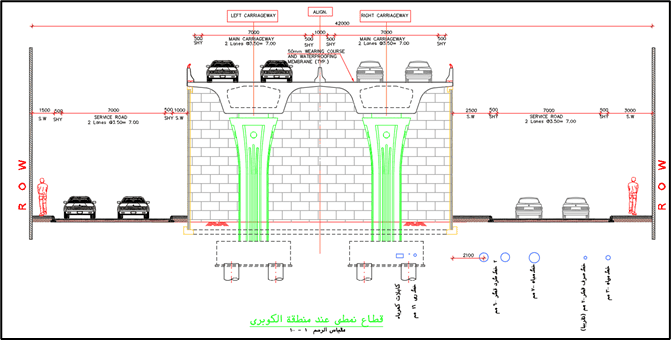

The bridge consists of approximate spans around 35m, 45m, 40m & 35m, with a total length of 180 m, and 18 m wide. The deck slab is cast-in-place post tensioned concrete Box Girder. The deck is resting on the bridge abutments and piers by means of elastomeric bearings and two monolithic piers. The bridge abutments and piers are supported on piled foundations. Reinforced concrete transition apron slabs are to be provided behind the abutments wing walls to avoid any settlement of the backfilling soil behind abutments at the inlet and outlet of the bridge.

Services Performed

  • Roads Design.
  • Structure Design.
  • Geotechnical Design.
  • Tender Documents.
  • Construction Supervision.
